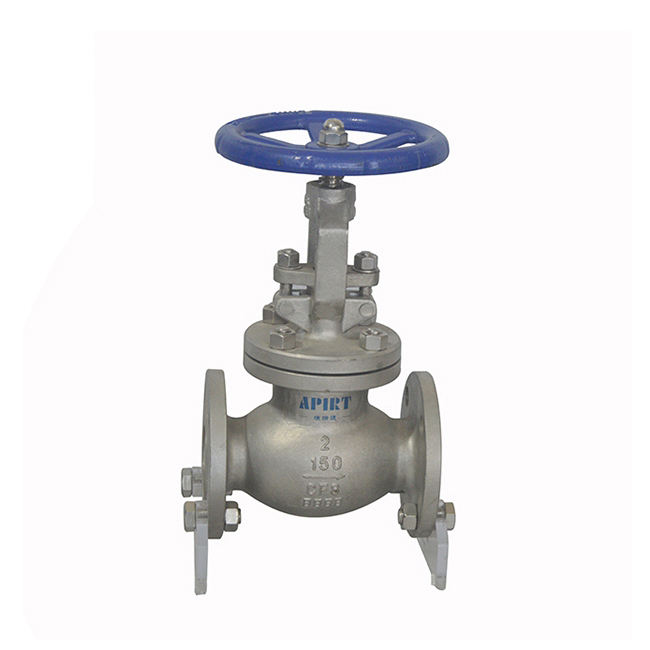

API美標法蘭截止閥特點： Feature
美標法蘭截止閥有：不銹鋼美標截止閥，鑄鋼美標截止閥
1.流線型，明桿帶支架 1.Streamline outside screw and yoke
2.中法蘭螺栓連接 2.bolted bonnet
3.活套連接閥瓣 3.Loose disc
4.升降閥桿與手輪 4.Rising stem and hand wheel
5.支架與閥蓋一體式 5.Yoke integral with bonnet
6.傘齒輪的操作選配 6.avail able with gear operator
7.標準法蘭連接 7.Flanged ends
美標法蘭截止閥產品規范Product Specification
API美標法蘭截止閥產品規范 Product Specification
產品規范 Product Specification | 設計規范Design Spec | 結構長度Face to Face | 連接法蘭Flanged End | 試驗與檢驗Test &Check | 壓力-溫度Pressure-Temp | 產品標識Marking | 供貨規范 Supply |
ASME B16.34 | ANSIB 16.10 | ANSIB 16.5 | API598 | ASME B 16.34 | MSS SP-25 | ASME B16.34 | |
BS 5160 | BS 5160 |
API美標法蘭截止閥主要零部件材料 Main Part Material－不銹鋼美標截止閥材質，美標鑄鋼截止閥材質
零件名稱 | 零部件材料 Part Material | Part Name | |||
閥體/閥蓋 | A216-WCB | A217-WC6 | A352-LCB | A351-CF8M | Body/Bonnet |
閘瓣 | A105 | A182-F11 | A182-F304 | A182-F316 | Disk |
閥桿 | A182-F6a | A182-F11 | A182-F6a | A182-F316 | Stem |
填料 | 柔性石墨/ Flexible Graphite | 聚四氟乙烯/PTFE | Packing | ||
墊片 | 18-8柔性石墨/18-8Flexible Graphite | Gasket | |||
螺栓 | A193-B7 | A193-B7 | A193-B7M | A193-B8 | Bolt |
適用溫度 | -29~425℃ | -29~550℃ | -46~350℃ | -40~200℃ | Suitable Temp |
適用介質 | 水，油品，蒸汽 Water，Oil，Steam | 蒸汽，油品 Steam，Oil | 丙烷，乙烯 Propane，Ethane | 硝酸類 Nitric Acid | Suitable Medium |
API美標法蘭截止閥尺寸列表Dimension List－美標不銹鋼截止閥，美標鑄鋼截止閥，不銹鋼美標截止閥等結構
產品型號 Type | NPS | DN | Class 150Lb | WT（kg） | |||||||
in | mm | L | D | D1 | D2 | b | z-Φd | H | D0 | ||
J41H-150Lb J41W-150LbP J41Y-150LbP J41Y-150LbR J41Y-150LbPL J41Y-150LbRL | 1/2" | 15 | 108 | 89 | 60.5 | 35 | 10 | 4-Φ15 | 169 | 125 | 5.0 |
3/4" | 20 | 117 | 98 | 70 | 43 | 11 | 4-Φ15 | 180 | 125 | 7.0 | |
1" | 25 | 127 | 108 | 79.5 | 51 | 12 | 4-Φ15 | 190 | 125 | 9.0 | |
11/4" | 32 | 140 | 117 | 89 | 63 | 13 | 4-Φ15 | 160 | |||
11/2" | 40 | 165 | 127 | 98.5 | 73 | 14.3 | 4-Φ16 | 347 | 180 | 15.0 | |
2" | 50 | 203 | 152 | 120.5 | 92 | 15.9 | 4-Φ19 | 356 | 180 | 18 | |
21/2" | 65 | 216 | 178 | 139.5 | 105 | 17.5 | 4-Φ19 | 381 | 240 | 30 | |
3" | 80 | 241 | 190 | 152.5 | 127 | 19.1 | 4-Φ19 | 411 | 280 | 41 | |
4" | 100 | 292 | 229 | 190.5 | 157 | 24 | 8-Φ19 | 454 | 280 | 64 | |
5" | 125 | 356 | 254 | 216 | 186 | 24 | 8-Φ22 | 541 | 320 | 86 | |
6" | 150 | 406 | 279 | 241.5 | 216 | 25.4 | 8-Φ22 | 656 | 360 | 113 | |
8" | 200 | 495 | 343 | 298.5 | 270 | 29 | 8-Φ22 | 800 | 450 | 115 | |
10" | 250 | 622 | 406 | 362 | 324 | 31 | 12-Φ25 | 1231 | 500 | 295 | |
12" | 300 | 698 | 483 | 432 | 381 | 32 | 12-Φ25 | 1450 | 600 | 450 | |
API美標法蘭截止閥尺寸列表Dimension List
產品型號Type | NPS | DN | Class 300Lb | WT（kg） | |||||||
in | mm | L | D | D1 | D2 | b | z-Φd | H | D0 | ||
J41H-300Lb J41W-300LbP J41Y-300LbP J41Y-300LbR J41Y-300LbPL J41Y-300LbRL | 1/2" | 15 | 152 | 95 | 66.5 | 35 | 15 | 4-Φ15 | 241 | 125 | 5.2 |
3/4" | 20 | 178 | 117 | 82.5 | 43 | 16 | 4-Φ19 | 241 | 125 | 7.3 | |
1" | 25 | 203 | 124 | 89 | 51 | 18 | 4-Φ19 | 283 | 160 | 9.5 | |
11/4" | 32 | 216 | 133 | 98.5 | 63 | 19 | 4-Φ19 | 320 | 200 | ||
11/2" | 40 | 229 | 156 | 114.3 | 73 | 21 | 4-Φ22 | 322 | 200 | 17.6 | |
2" | 50 | 267 | 165 | 127 | 92 | 23 | 8-Φ19 | 399 | 200 | 25 | |
21/2" | 65 | 292 | 190 | 149 | 105 | 26 | 8-Φ22 | 438 | 250 | 30 | |
3" | 80 | 318 | 210 | 168.5 | 127 | 29 | 8-Φ22 | 464 | 280 | 35 | |
4" | 100 | 356 | 254 | 200 | 157 | 32 | 8-Φ22 | 565 | 355 | 56 | |
5" | 125 | 400 | 279 | 235 | 186 | 35 | 8-Φ22 | 614 | 400 | 96 | |
6" | 150 | 444 | 318 | 270 | 216 | 37 | 12-Φ22 | 717 | 450 | 120 | |
8" | 200 | 559 | 381 | 330 | 270 | 42 | 12-Φ25 | 930 | 500 | 212 | |
10" | 250 | 622 | 444 | 387.5 | 324 | 48 | 16-Φ29 | 1012 | 500 | 460 | |
12" | 300 | 711 | 521 | 451 | 381 | 51 | 16-Φ32 | 1231 | 600 | 615 | |
<
<
<
<
<
<
<
<
<
<
